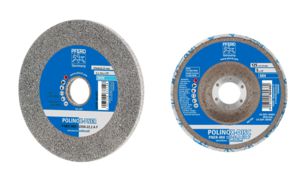

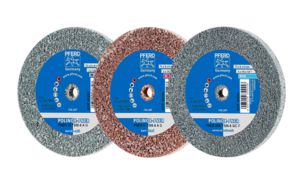

Unitized Wheels
Unitized Wheels and Discs

Unitized Wheels

Call for Price

Category:

Description

Consists of multiple heavily compressed, non-woven layers, which are bonded together by a special grain/resin system. This bond results in a very good surface finish, high stock removal and long tool life. These properties are particularly apparent when deburring, blending, finishing and polishing soft metals, alloyed and high-alloy steels in addition to titanium.

Type for straight grinders, flexible shafts and bench grinders are particularly suitable for work on smaller surfaces. Type for speed-adjustable angle grinders and fillet weld grinders are suitable for work on fillet welds and very hard-to-reach slots or indentations.

Size (dia mm x thickness mm): 25 x 25, 50 x 3, 75 x 3, 75 x 6, 75 x 13, 150 x 25

Bore: 6mm, 22.2mm, 25.4mm

Abrasive:  Aluminium Oxide, Silicon Carbide

Type: Soft, Medium- soft, Medium-hard, Hard

Soft: Outstanding adaptability, durability, abrasive performance and very high surface quality are maintained. Suited to machining contours.

Medium-soft: Increased edge strength and extended tool life for tough blending and polishing applications.

Medium -hard: Increased edge strength and extended tool life for tough blending and polishing applications.

Hard: Very high stock removal, good edge strength and long tool life for tough deburring and polishing.

Available for straight grinders, flexible shafts and bench grinders or angle and fillet weld grinders

Materials that can be worked:

  • Aluminium
  • Cobalt-based alloys
  • Other non-ferrous metals
  • High-temperature-resistant materials
  • Nickel-based alloys (e. g. Inconell and Hasteloy)
  • Bronze
  • Hard non-ferrous metal
  • Titanium
  • Titanium alloys
  • Copper
  • Soft non-ferrous metal
  • Brass
  • Zinc
  • Stainless steel (INOX)
  • Thermoplastics
  • Fibre-reinforced duroplastics (GRP, CRP)
  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
  • Steel materials with a hardness over 54 HRC
  • Steel, cast steel
  • Steels up to 1,200 N/mm² (< 38 HRC)

Applications:

  • Roughening
  • Deburring
  • Surface work
  • Cleaning
  • Structuring (matt finishing, brush matting and satin finishing)
  • Fine grinding in multiple steps

Drive types:

  • Flexible shaft drive
  • Straight grinder
  • Angle grinder
  • Fillet weld grinder
  • Bench grinder
