Spiral bands

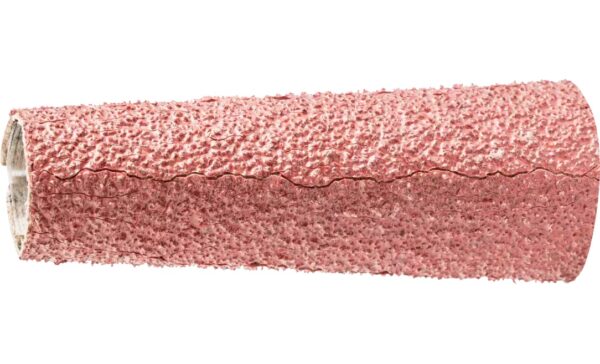

Conical Spiral Band
Spiral Band Allox
Spiral Band Zirc

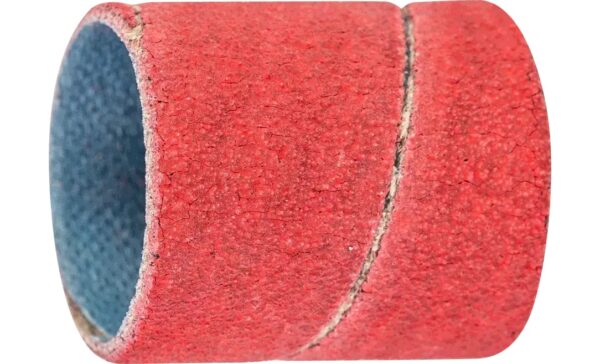

Spiral Band Ceramic

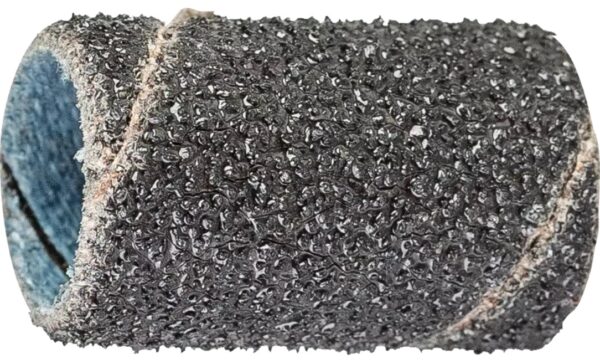

Spiral Band SiC
Spiral Band

Spiral Bands

Call for Price

Description

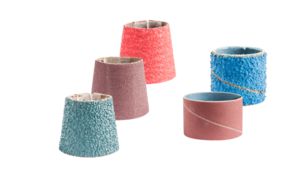

Spiral bands are coated abrasives that are spirally bound into a short tube and used for high precision grinding, sanding or polishing. The no lap construction of these sanding sleeves provides a clean finish without leaving shadow marks on the surface

Shape: Cylindrical, Conical

Cylindrical (dia x thickness mm): 4 x 10, 6 x 10, 8 x 10, 10 x 10, 10 x 20,  13 x 10, 13 x 25, 15 x 10, 15 x 30, 19 x 25, 22 x 20, 25 x 25, 30 x 20, 30 x 30, 38 x 25, 45 x 30, 51 x 25, 60 x 30, 75 x 30, 100 x 40

Conical dia : 20/14mm, 29/22mm, 36/22mm

Conical thickness: 30mm, 60mm, 63mm

Abrasive type: Aluminium Oxide, Zirconia Alumina, Ceramic, Silicon Carbide,

Cooling Additives Available - Active grinding additives in the coating substantially improve the stock removal rate, prevent clogging and result in cooler grinding.

Grits: 40, 50, 60, 80, 120, 150, 240

Materials that can be worked:

  • Cobalt-based alloys
  • Other non-ferrous metals
  • High-temperature-resistant materials
  • Nickel-based alloys (e. g. Inconell and Hasteloy)
  • Bronze
  • Hard non-ferrous metal
  • Titanium
  • Titanium alloys
  • Stainless steel (INOX)
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Annealed cast iron
  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
  • Steel materials with a hardness over 54 HRC
  • Steel, cast steel
  • Steels up to 1,200 N/mm² (< 38 HRC)
  • Aluminium
  • Thermoplastics
  • Fibre-reinforced duroplastics (GRP, CRP)
  • Stone

Applications:

  • Roughening
  • Levelling
  • Deburring
  • Surface work
  • Work on edges
  • Sharpening
  • Weld dressing
  • Fine grinding in multiple steps

Drive types:

  • Flexible shaft drive
  • Straight grinder
