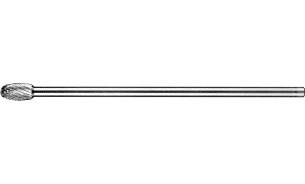

Oval Extended Shank

Description

Oval shaped burr according to DIN 8032 with a extended shank.

Cutting head dia: 3mm, 6mm, 8mm, 10mm, 12mm

Cutting head length: 7mm, 10mm, 13mm, 16mm, 20mm

Shank dia: 3mm, 6mm

Overall length: 75mm, 85mm, 160mm, 163mm, 166mm, 170mm

Cut: Single, Double

Materials that can be worked:

• Steel
• Stainless steel
• Cast iron
• High temperature resistant materials
• Nickel and cobalt based alloys
• Titanium
• Titanium alloys

Applications:

• Milling out
• Levelling
• Deburring
• Cutting out holes
• Surface work
• Milling
• Hard to reach areas
• Weld dressing

Drive types:

• Flexible shaft drive
• Straight grinder
• Stationary machines
• Robot applications
• Machine tool
