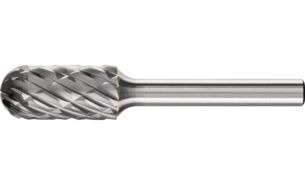

Cylindrical Radius End Carbide Burr

Cylindrical With Radius End

Call for Price

Description

Cylindrical burr with radius end according to DIN 8032. Combination of cylindrical and ball shapes.

Cutting head dia: 2mm, 3mm, 6mm, 8mm, 10mm, 12mm, 16mm

Cutting head length: 7mm, 10mm, 13mm, 16mm, 20mm, 25mm

Shank dia: 3mm, 6mm, 8mm

Overall length: 40mm, 43mm, 55mm, 60mm, 65mm

Cut: Single, Double, Chip Breaker, Fine Cut, HICOAT, ALLROUND, STEEL, INOX, NON-FERROUS, CAST, TITANIUM, TOUGH

Materials that can be worked:

  • Hard aluminium alloys
  • Hard non-ferrous metal
  • Bronze
  • Other non-ferrous metals
  • Titanium
  • Titanium alloys
  • Copper
  • Soft non-ferrous metal
  • Brass
  • Zinc
  • Stainless steel (INOX)
  • Cast iron
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Annealed cast iron
  • Black cast iron (GTS, GJMB)
  • White annealed cast iron (GTW, GJMW)
  • Steel, cast steel
  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
  • Case-hardened steels
  • Tool steels
  • Steels up to 1,200 N/mm² (< 38 HRC)

Applications:

  • Milling out
  • Levelling
  • Deburring
  • Cutting out holes
  • Surface work
  • Milling
  • Weld dressing

Drive types:

  • Flexible shaft drive
  • Straight grinder
  • Stationary machines
  • Robot applications
  • Machine tool
