Inverted Cone Carbide Burr
Inverted Cone With End Cut

Inverted Cone With End Cut

Call for Price

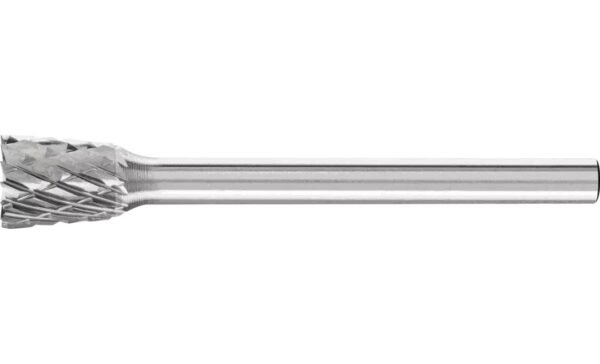

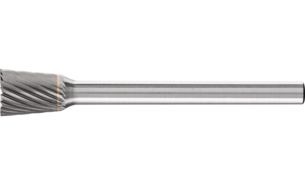

Inverted cone-shaped burr with end cut, tapered towards the shank according to DIN 8032 with cut conforming to DIN 8033. Suitable for work on hard-to-reach, reverse-side edges.

Cutting head dia: 3mm, 6mm

Cutting head length: 7mm

Shank dia: 3mm

Overall length: 37mm

Cut: Double, Fine

Materials that can be worked:

  • Hard aluminium alloys
  • Soft aluminium alloys
  • Hard non-ferrous metal
  • Bronze
  • Other non-ferrous metals
  • soft non-ferrous metal
  • Copper
  • Soft non-ferrous metal
  • Brass
  • Zinc
  • Stainless steel (INOX)
  • Cast iron
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Annealed cast iron
  • Black cast iron (GTS, GJMB)
  • White annealed cast iron (GTW, GJMW)
  • Steel, cast steel
  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
  • Case-hardened steels
  • Tool steels
  • Steels up to 1,200 N/mm² (< 38 HRC)


  • Deburring
  • Milling
  • Work on edges
  • Chamfering
  • Countersinking

Drive types:

  • Flexible shaft drive
  • Straight grinder
  • Stationary machines
  • Robot applications
  • Machine tool
