Countersink 60 Carbide Burr
Countersink 60 Carbide Burr

Countersink 60°

Call for Price

Description

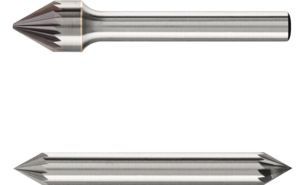

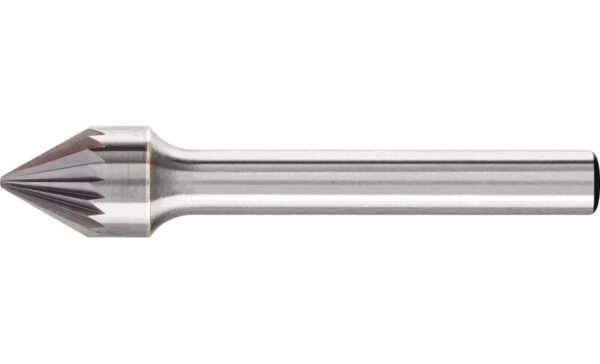

Conical counterbore burr according to DIN 8032, with angle (60°).

Cutting head dia: 6mm, 10mm, 16mm

Cutting head length: 5mm, 8mm, 13mm

Shank dia: 6mm

Overall length: 50mm, 53mm, 56mm

Cut: Single, Fine

Materials that can be worked:

  • Hard aluminium alloys
  • Soft aluminium alloys
  • Bronze
  • Other non-ferrous metals
  • Hard non-ferrous metal
  • soft non-ferrous metal
  • Copper
  • Soft non-ferrous metal
  • Brass
  • Zinc
  • Stainless steel (INOX)
  • Cast iron
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Annealed cast iron
  • Black cast iron (GTS, GJMB)
  • White annealed cast iron (GTW, GJMW)
  • Steel, cast steel
  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
  • Case-hardened steels
  • Tool steels
  • Steels up to 1,200 N/mm² (< 38 HRC)

Applications:

  • Deburring
  • Milling
  • Work on edges
  • Chamfering
  • Countersinking

Drive types:

  • Flexible shaft drive
  • Straight grinder
  • Stationary machines
  • Robot applications
  • Machine tool
