Conical With Radius End

Description

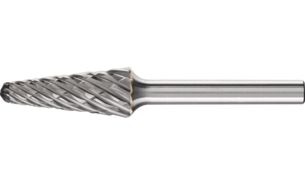

Conical burr with radius end according to DIN 8032.

Cutting head dia: 8mm, 10mm, 12mm, 16mm

Cutting head length: 20mm, 25mm, 30mm

Shank dia: 6mm, 8mm

Overall length: 60mm, 65mm, 70mm

Cut: Single, Double, Chip Breaker, Fine, ALLROUND, STEEL, INOX, ALU, NON-FERROUS, CAST, TOUGH

Materials that can be worked:

• Hard aluminium alloys
• Hard non-ferrous metal
• Bronze
• Other non-ferrous metals
• Titanium
• Titanium alloys
• Copper
• Soft non-ferrous metal
• Brass
• Zinc
• Stainless steel (INOX)
• Cast iron
• Grey/nodular cast iron (GG/GJL, GGG/GJS)
• Annealed cast iron
• Black cast iron (GTS, GJMB)
• White annealed cast iron (GTW, GJMW)
• Steel, cast steel
• Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
• Case-hardened steels
• Tool steels
• Steels up to 1,200 N/mm² (< 38 HRC)

Applications:

• Milling out
• Levelling
• Deburring
• Cutting out holes
• Surface work
• Milling
• Weld dressing

Drive types:

• Flexible shaft drive
• Straight grinder
• Stationary machines
• Robot applications
• Machine tool
