Composite Brushes
Composite Wheel Brushes

Composite Brushes

Call for Price

Description

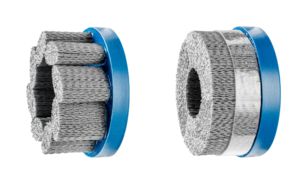

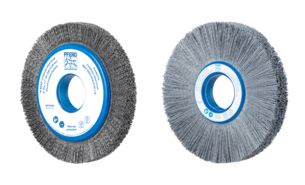

Specially designed for industrial, automated use. They are suitable for a variety of applications and their variable clamping systems means they can be used on many different drive shafts. The FLEX type is more flexible due to longer trim length on wheel brushes and the special arrangement of the filament on discs. These are more suited for work on irregular surfaces.

Shapes:

  • Wheel brush crimped
  • Wheel brush FLEX
  • Cup/Disc
  • Cup/Disc FLEX
  • Shank mounted end brush

Grit Size: 80, 120, 180, 320

Bore: M14, 22.2mm, 50.8mm or Shank: 6mm

Filament Types: Silicon Carbide, Ceramic Oxide

Materials that can be worked:

  • Aluminium
  • Other non-ferrous metals
  • High-temperature-resistant materials
  • Cobalt-based alloys
  • Hard non-ferrous metal
  • Bronze
  • Stainless steel (INOX)
  • Cast iron
  • Wood
  • Duroplastics
  • Thermoplastics
  • Steel, cast steel
  • Nickel-based alloys (e. g. Inconell and Hasteloy)
  • Nickel- or titanium-based superalloys
  • Titanium
  • Titanium alloys
  • Soft titanium alloys (tensile strength 500 N/mm²)
  • Soft non-ferrous metal

Applications:

  • Roughening
  • Deburring
  • Cleaning
  • Structuring (matt finishing, brush matting and satin finishing)

Drive types:

  • Stationary machines
  • Robot applications
  • Machine tool

PFERDVALUE:

Piktogramm Ergonomics
Piktogramm Efficiency
